Highly recommended, Bombastik CEO uses it himself.
Bargain price great performance.
Premium Construction: This SDR transceiver switch is made of high-quality aluminum alloy with nice heat dissipation, and its robust construction ensures long-lasting and reliable performance that easily meets the demands of both transmitting and receiving.
Powerful Performance: With a maximum transmission power of 100W and a frequency ranges of DC-160MHz, this antenna sharing device provides exceptional signal strength and clarity.
Compact and Portable Design: Compact size makes it easy to carry and store, say goodbye to bulky equipment and enjoys the convenience of the space-saving solutions.
User-Friendly: The SDR transceiver switch is equipped with comprehensive tools for self-operation, suitable for personals use for your convenience.

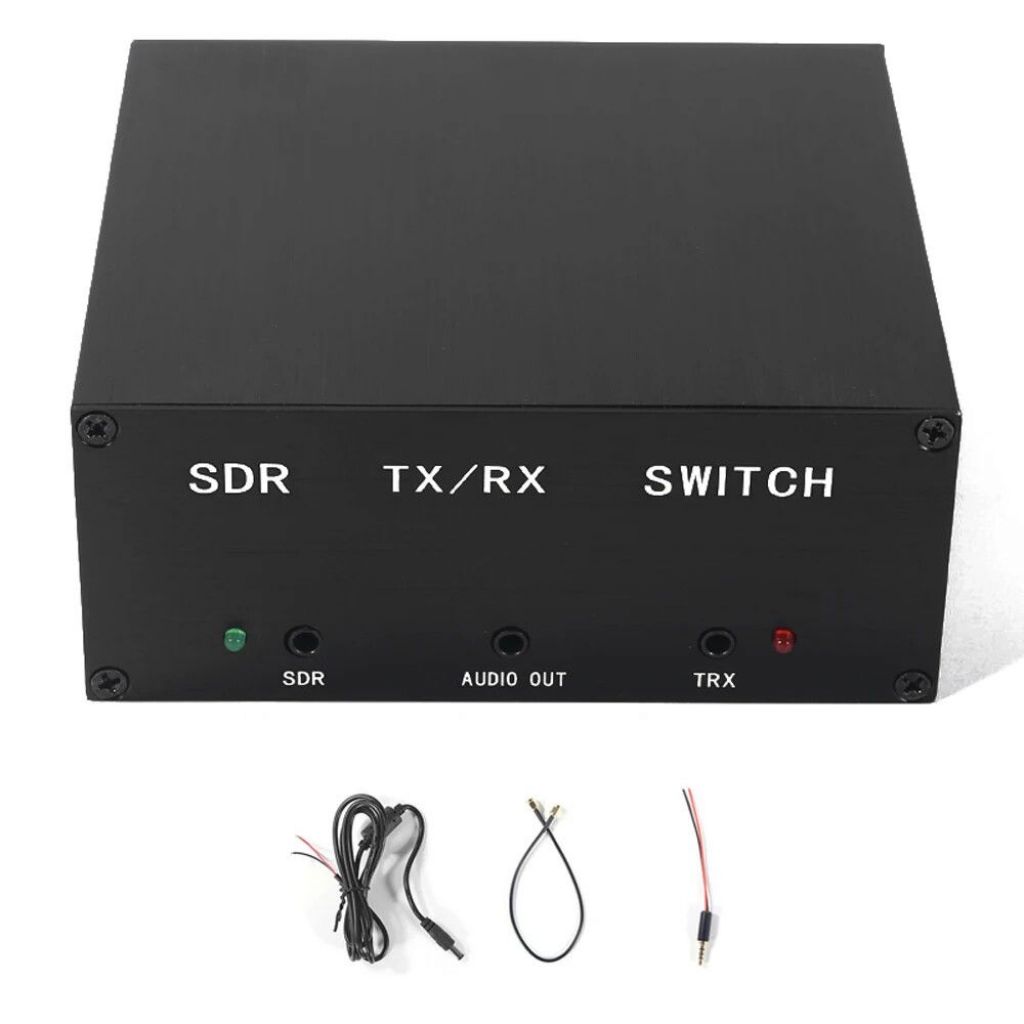

Complete Package: The set includes 1x main unit, 1x power cable, 1x SMA to SMA cable and 1x PTT control cable.
Specifications:
Color: Black
Material: Aluminum Alloy
Impedance: 50Ω
Frequency Ranges: DC-160MHz
Maximum TX Power: 100W
RF Sense Threshold:<10mW (1.8MHz-30MHz tested)
ON Time < 20ms / Release Time: < 190ms
Insertion Loss: < 0.3dB @ 144MHz (0.2dB typical)
RX Isolation: > 38dB @ 144MHz (40dB typical)
Gases Discharge Protecting
Power supply: 13.8V DC200mA
Item Size: 135 * 126 * 50mm/ 5.3 * 5.0 * 2.0in
Item Weight: 420g/ 14.8oz
Package Size: 230 * 130 * 80mm/ 9.1 * 5.1 * 3.1in
Package Weight: 475g/ 16.8oz
